Slider

Slider create a slider over a numeric range and return its value.

API

Interface

type Numeric interface {
	~int | ~int64 | ~float64
}

func Slider[T Numeric](c *tgframe.Container, label string, conf ...*SliderConf[T]) T

Parameters

  • c is Parent container.
  • label is the label of the slider.
  • conf is an optional configuration, at most one.
  • Return the value the slider sits at.

Slider shares its constraint with Number, so the type comes from the conf or from an explicit instantiation:

threshold := tgcomp.Slider[int](p.Main, "Threshold")
ratio := tgcomp.Slider(p.Main, "Ratio", &tcinput.SliderConf[float64]{})

A slider always sits somewhere in its range, so it always has a value to hand back — no pointer, nothing to check: the value the app user left it at, else Default, else Min. Default stays a pointer in the conf because an unset one means Min, which need not be zero.

SliderConf is generic, so tgcomp.SliderConf is an alias you can name but the methods below live on tcinput.SliderConf. Import it from github.com/voilelab/toolgui/toolgui/tgcomp/tcinput.

// SliderConf is the configuration for a slider component.
type SliderConf[T Numeric] struct {
	tgframe.Base // ID

	// Default is the value the slider starts at. Defaults to Min.
	Default *T

	// Min is the low end of the range. Defaults to 0.
	Min *T

	// Max is the high end of the range. Defaults to 100.
	Max *T

	// Step is the distance between two positions. Defaults to 1 for an
	// integral T, and to a hundredth of the range for a floating point one.
	Step *T

	// Disabled is the disabled state of the slider component.
	Disabled bool
}

func (c *SliderConf[T]) SetDefault(v T) *SliderConf[T]
func (c *SliderConf[T]) SetMin(v T) *SliderConf[T]
func (c *SliderConf[T]) SetMax(v T) *SliderConf[T]
func (c *SliderConf[T]) SetStep(v T) *SliderConf[T]

A zero Step reads as unset, as it does on Number: a slider that cannot move is not a value to pass on. A Step that does not divide the range evenly is fine, and leaves both ends of the range where you put them.

A Min above Max, a negative Step, or a Default outside the range are mistakes in the call rather than values to correct, and panic.

When the value is reported

The value is sent to Go when the handle is released, not while it is being dragged. A drag across the range is one rerun rather than one per step it crosses, which is what keeps a page with real work behind it usable.

The practical consequence is that anything downstream of a slider updates once the app user lets go, not as they move. A value that has to follow the handle live belongs in the browser, not in a rerun.

Example

	sliderValue := tgcomp.Slider(p.Main, "Slider",
		(&tcinput.SliderConf[int64]{}).SetMin(0).SetMax(100).SetStep(10).
			SetDefault(50))

	// A slider always sits somewhere, so there is always a value.
	tgcomp.Text(p.Main, fmt.Sprint("Value: ", sliderValue),
		&tgcomp.TextConf{ID: "slider_result"})

A slider derives its id from its label, so two with the same label collide. Naming either of them is the way out:

tgcomp.Slider[int](p.Main, "Weight")
tgcomp.Slider[int](p.Main, "Weight", &tcinput.SliderConf[int]{ID: "second_weight"})

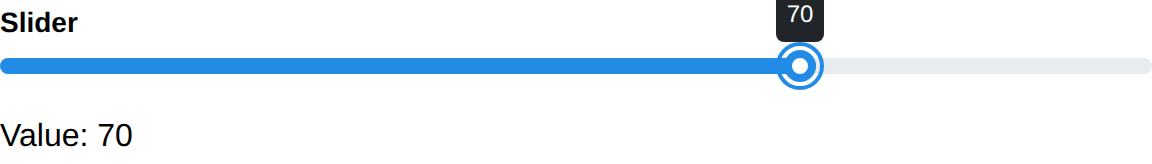

slider component
