Metric

Metric component displays a labelled value, with an optional delta under it: the number card of a dashboard.

The label and the value support emoji shortcodes.

API

func Metric(c *tgframe.Container, label, value string, conf ...*MetricConf)

• c is Parent container.
• label is the name of the metric.
• value is the value, already formatted the way it should be shown.
• conf is an optional configuration, at most one.

// MetricConf is the configuration for the Metric component.
type MetricConf struct {
	tgframe.Base // ID

	// Delta is the change shown under the value, e.g. "+12%" or "-3.2k".
	// Hidden when empty.
	Delta string

	// DeltaColorInverse paints an increase red and a decrease green.
	DeltaColorInverse bool
}

A delta that starts with - is a decrease, and is drawn in red with a down arrow; anything else is an increase, drawn in green with an up arrow. Set DeltaColorInverse for a metric where growing is the bad news — cost, latency, churn — and the two colors swap. The arrow follows the sign either way, so the direction still reads without the color.

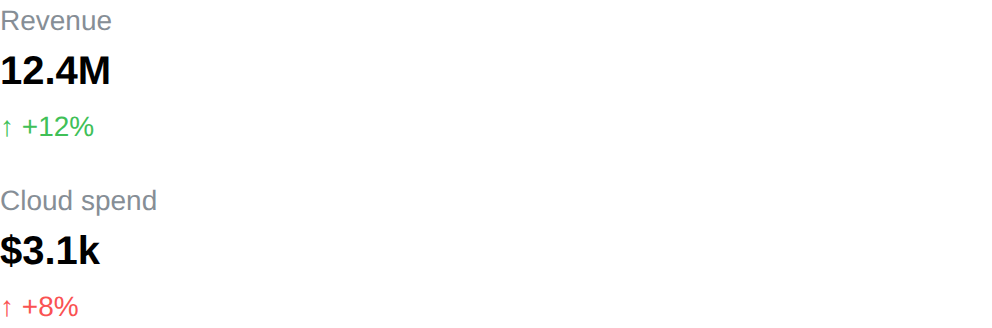

Example

	// The second metric is a cost, where growing is the bad news, so its
	// delta is colored the other way round.
	tgcomp.Metric(p.Main, "Revenue", "12.4M",
		&tgcomp.MetricConf{Delta: "+12%"})
	tgcomp.Metric(p.Main, "Cloud spend", "$3.1k",
		&tgcomp.MetricConf{Delta: "+8%", DeltaColorInverse: true})
