Select Slider

SelectSlider create a slider over a list of discrete items and return the index of the one it sits on.

API

Interface

func SelectSlider(c *tgframe.Container, label string, items []string,
	conf ...*SelectSliderConf) int

Parameters

  • c is Parent container.
  • label is the label of the slider.
  • items is the list of options, drawn as marks along the track.
  • conf is an optional configuration, at most one.
  • Return the index of the item the slider sits on, 0-indexed as Select's is.

The handle is always on an item, so unlike Select there is no "nothing selected" state and nothing to check: the index is the one the app user left it at, else Default.

// SelectSliderConf is the configuration for the SelectSlider component.
type SelectSliderConf struct {
	tgframe.Base // ID

	// Default is the index of the item the slider starts on. Defaults to 0.
	Default int
}

An empty items, or a Default outside it, is a mistake in the call rather than a value to correct, and panics.

Like Slider, the index is sent to Go when the handle is released rather than while it is being dragged.

Example

	sizes := []string{"S", "M", "L"}
	selIdx := tgcomp.SelectSlider(p.Main, "SelectSlider", sizes)

	tgcomp.Text(p.Main, "Value: "+sizes[selIdx],
		&tgcomp.TextConf{ID: "select_slider_result"})

Use this over Select when the options are ordered — sizes, tiers, buckets — so that their order is part of what the control shows. For an unordered list, a dropdown reads better.

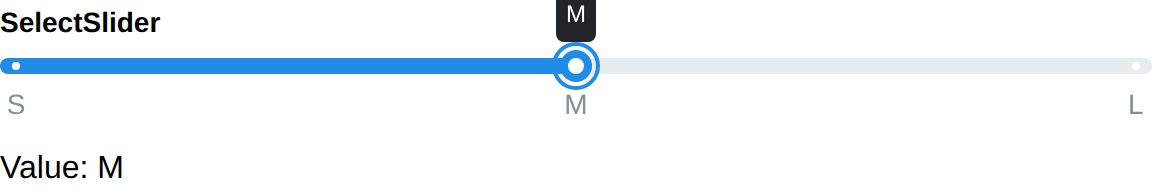

select slider component
